WIDE WORKLOAD COVERAGE
The 3000 series offers the widest workload coverage of any multi-product calibrator, with the ability to calibrate 18 types of instrument. It has the power to drive older analogue instruments alongside the accuracy to calibrate modern digital instruments.
COST-EFFECTIVE CALIBRATION
The 3000 series features three models designed to suit every budget and accuracy requirement, and with a wide range of options that allow your calibrator to be tailored to meet your needs, the 3000 series is expandable for future needs.
AUTOMATED CALIBRATION
Automate calibration with Procal – the world’s easiest to use multi-discipline calibration software for maximum calibration throughput.

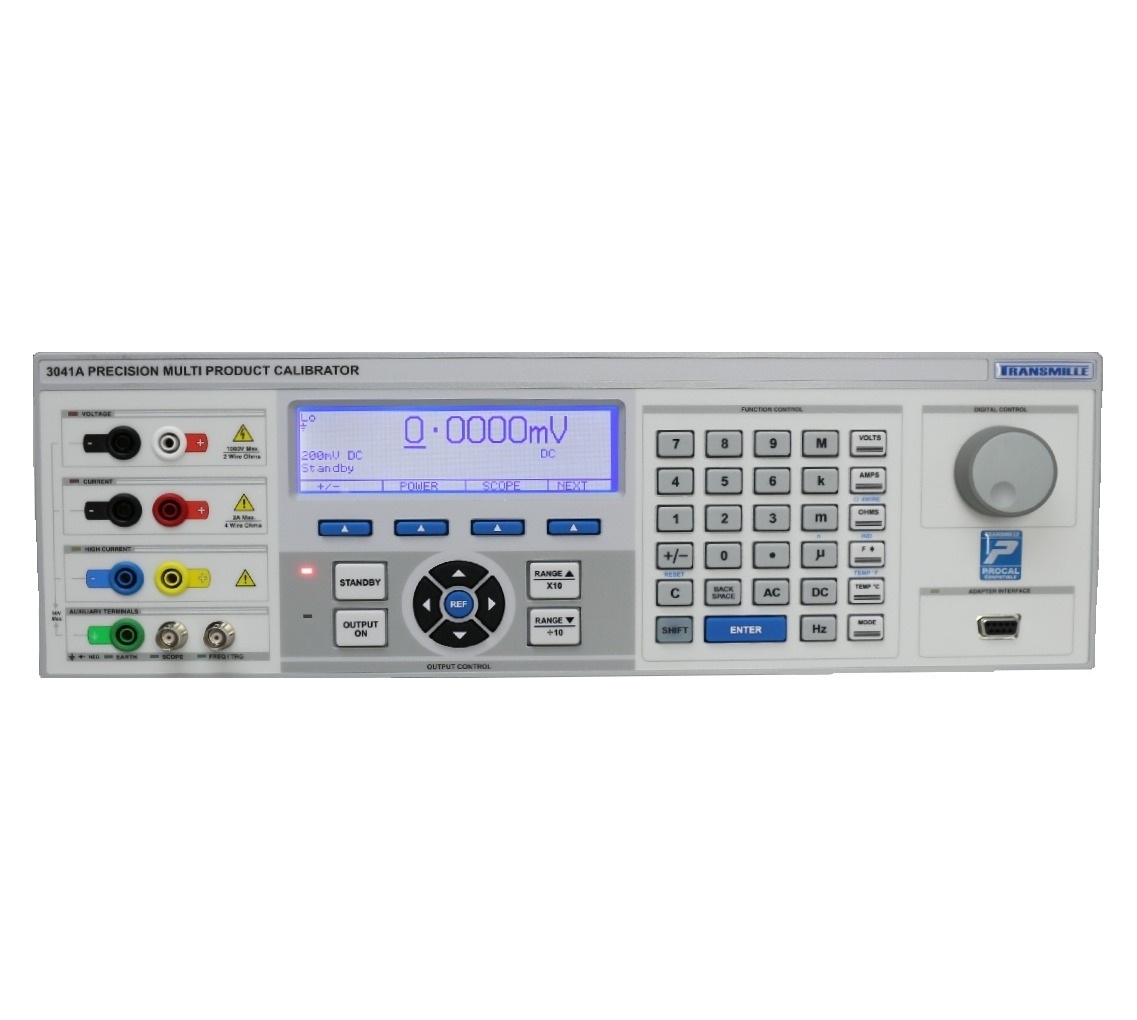

3041A Specifications
| DC Voltage Best 1 Year Total Accuracy |
0 – ±1000 V ±25 ppm |
| DC Current Best 1 Year Total Accuracy |
0 – ±30 A ±50 ppm |
| AC Voltage Best 1 Year Total Accuracy |
20 mV – 1000 V, 10 Hz – 500 MHz 0.04 % |
| AC Current Best 1 Year Total Accuracy |
20 µA – 30 A, 10 Hz – 10 kHz 0.06 % |
| Resistance (Passive) Best 1 Year Total Accuracy |
0 – 1 GOhms 40 ppm |
| Capacitance (Passive) Best 1 Year Total Accuracy |
1 nF – 10 µF 0.25 % |
| Frequency Best 1 Year Total Accuracy |
1 Hz – 10 MHz 20 ppm (1 ppm option) |
| Temperature(Thermocouple) Best 1 Year Total Accuracy |
J / K / T / R / S / B / U / N / E / L / U / C 10 µV/°C, ±0.09 °C |
