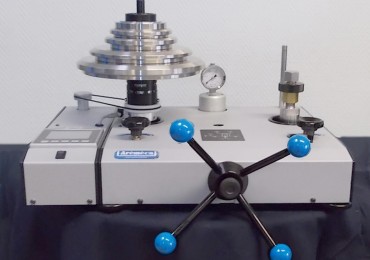

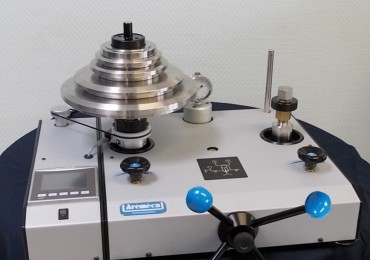

Automatic Dead weight tester BA4-200B

Brand:

reference : BA4-200B

Technical specifications

  • measuring : 2.5 to 200 bar / 25 to 3000 PSI / 250 to 20000 kPa
  • uncertainly of the pressure measured by the dead weight : 0.0002 + (5.10-5 x P* ) (*with P in bar)
  • accuracy : 0.005% of the scale / option : calibration COFRAC or DKD
  • weight of the DWT without weights : 24 Kg
  • generator base : CA2-200B
  • fluid : clean and dry air type compressed air or azote + Piston lubrification system : Oil H15 – fluid density : 845 kg/m3
  • typical piston section : 15.6966mm²
  • piston/cylinder/pipe material : P = carbide tungstene / C = treated steel
  • number of pistons : 1

Options

To be specified when ordering :
– Choice of the unit of the principal set of weights: Bar or PSI
– Standard gravity (9.80665m/s²) or special gravity (indicate the desired value)

Options available :
– reference OP237-200 : fine increment set of weigts (1mg to 50g) with certificate of calibration COFRAC
– A calibration certificate COFRAC or DKD/DAkkS.
– Oxygen degreasing

Request a quote
Add to Wishlist
Add to compare
Categories: , , Brand:

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + a factory calibration certificate traceable to the national standards + the data sheet + 0.5 liter of mineral Oil with safety sheet
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or service after sale of your unit – Calibration device recommended every 2 years depending on your use.
