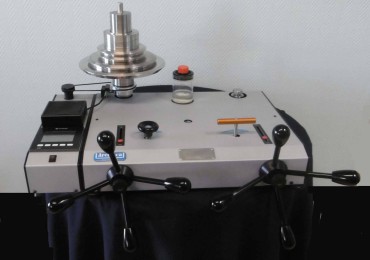

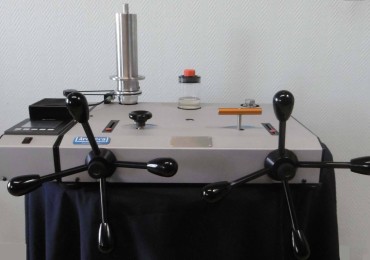

BH5-10000B

Brand:

Technical specifications

  • measuring : 200 to 10000 bar / 3000 to 145000 PSI
  • uncertainly of the pressure measured by the dead weight : 5.10-4 x P* (*with P in bar)
  • accuracy : 0.05% of the scale
  • weight of the DWT without weights : 35 Kg
  • generator base : CH3-10000B
  • fluid : Oil sebacate – fluid density : 915 kg/m3
  • typical piston section : 0.5026mm²
  • piston/cylinder/pipe material : P = carbide tungstene / C = carbide tungstene
  • number of pistons : 1

Additional information  :

  • Delivery details : a manual are provided in English and French with the device + a factory calibration certificate traceable to the national standards + the data sheet + 0.5 liter of mineral Oil with safety sheet
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or service after sale of your unit – Calibration device recommended every 2 years depending on your use.

Options

To be specified when ordering :
– Standard gravity (9.80665m/s²) or special gravity (indicate the desired value)

Options available :
– Intermediaite set of weights and/or additional principael set of weights for different units
– A calibration certificate COFRAC or DKD/DAkkS.
