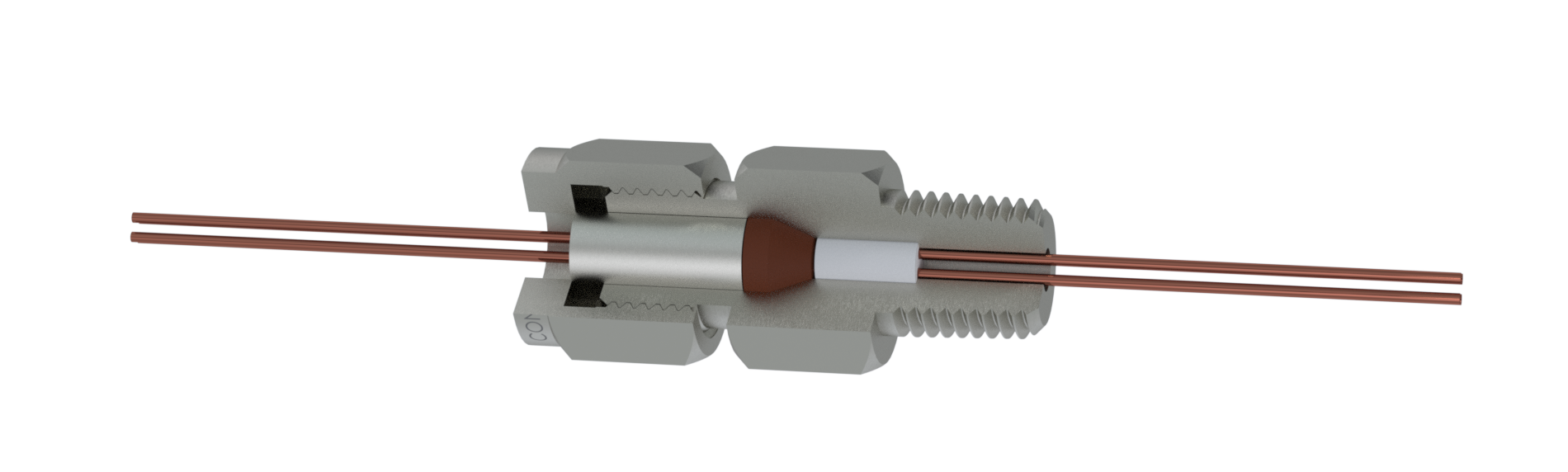

Conax Multi-hole Ceramic Compression Seal Fitting (MHC)
Features:
* Seals 1 to 16 Elements
* For Gas or Liquid
* Stainless Steel Fitting
* “Soft Sealant”
* Adjustable Immersion Length
* Selected Elements Can Be Readily Replaced
* Reusable
* Temperature Range From -400°F to +1600°F (-240°C to +870°C)
* Pressure*: Vacuum to 10,000 PSI (690 bar)
Application Ideas:
Seal multiple thermocouple, RTD or thermistor probes, tube bundles, liquid level sensors, or a variety of devices in a single fitting.
Available replacement pieces are:
* Replacement Packing Set (RPS) consisting of sealant and two insulators is available. Example: RPS-MHC4- 040-6-T
* Replacement Sealant (RS) consisting of sealant only is also available.
Example: RS-MHC4-040-6-T
