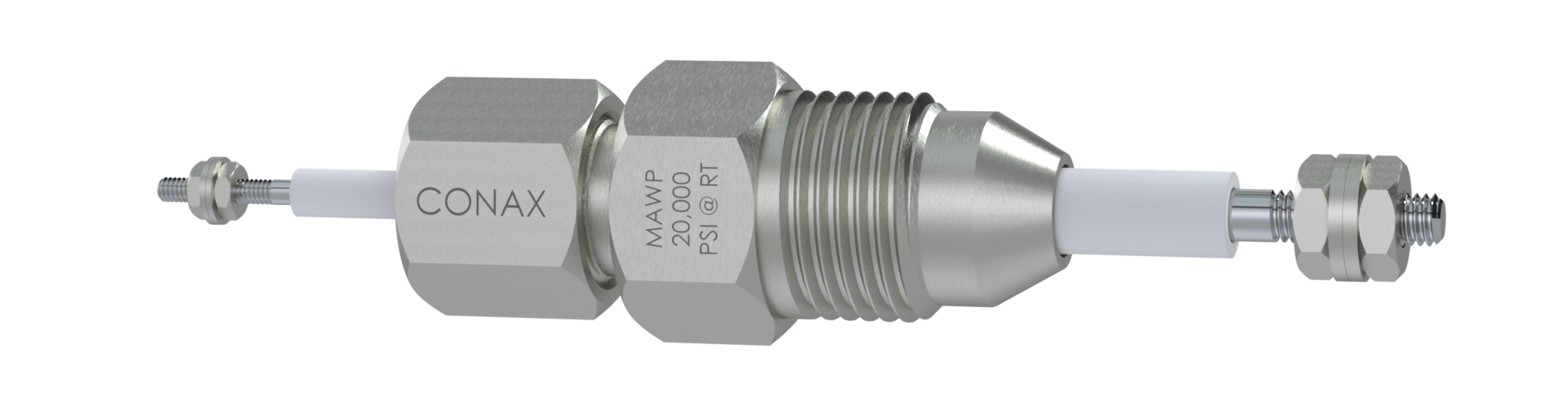

Conax Power Compression Seal Feedthrough (HPEG)
Features:
* Each unit has a stepped electrode. Larger diameter of electrode is on the body side.
* Electrode is copper (CU), stainless steel (SS) and nickel (NI).
* Max amperage rating:
| Feedthrough Diameter (inches) | CU | SS | NI |
| 093/187 | 20A | 10A | 3A |
| 187/312 | 60A | 25A | 9A |
* Voltage rating 2000VDC
* Body material is 316SS, ASTM 479
* SST nuts and washers for NI and SS, brass for CU
* All prices include a pressure test at 68°F
| Feedthrough Type | Thread Size | Max Pressure Rating @ 68°F |
| HPEG(ASM5/S316)-093/187-A-CU-V | .8126-16UNF-2A | 20,000 |
| HPEG(ASM7/S316)-187/312-A-CU-V | .750-14NPSM | 20,000 |
