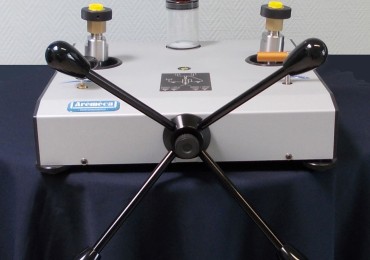

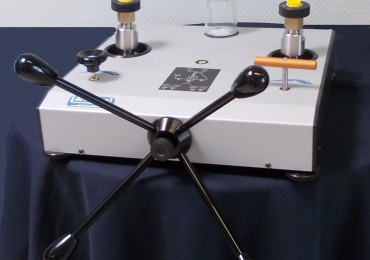

High performance comparison bench 4000 bar

Brand:

Technical specifications

  • measuring : 0 to 4000 bar / 0 to 60000 PSI / 0 to 400000 kPa
  • sensitivity : 10% Pmaxi = 0.2 bar / 50% Pmaxi = 1 bar / 100% Pmaxi = 2 bar
  • weight of the comparison bench : 18 Kg
  • fluid : Oil sebacate – fluid density : 915 kg/m3
  • typical piston section : low pressure = 7 cm² / High pressure = 0.2cm²
  • piston/cylinder/pipe material : P:BP = stainless steel + carbide tungstene / C = dtainless steel + treated steel
  • pipe material : Copper + polyamide + stainless steel
  • number of pistons : 2

Options

– Addition of a reservoir pump (Ref. OP0158)
– Kit to modify the comparison test pump into dead weight tester (CH2 -> BH2) – Contact us !

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + data sheet + Certificate + 0.5 liter of mineral Oil
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or after sales service your unit – The calibration is recommended every 2 or 5 years according to your use.

Complete your workstation with our product suggestions :
– carrying case
– sprotective cover
– reference pressure gauge
– fine adjustment valve
– additional adaptors
– cleaning tools
– oils, o-rings or spare parts
