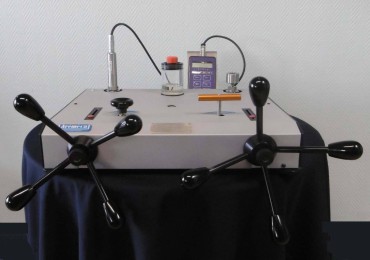

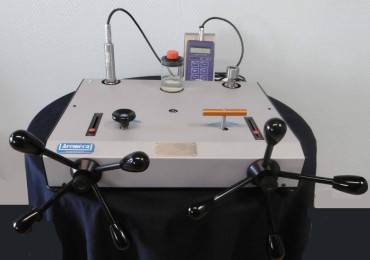

high pressure comparison test pump 10000 bar

Brand:

reference : CH3-10000B

Technical specifications

  • measuring : 0 to 10000 bar / 0 to 145000 PSI / 0 to 1000000 kPa
  • weight of the comparison bench : 30 Kg
  • fluid : Oil sebacate – fluid density : 915 kg/m3
  • typical piston section : low pressure = 7 cm² / High pressure = 0.2cm² / veri high pressure = 0.1cm²
  • piston/cylinder/pipe material : P:BP = stainless steel + carbide tungstene / C = treated steel
  • pipe material : Copper + stainless steel
  • number of pistons : 3

Options

– Kit to modify the comparison test pump into dead weight tester (CH3 -> BH5)

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + data sheet + Certificate + 0.5 liter of mineral Oil
  • Maintenance : Our technical service department is at your disposition for the revision, or after sales service your unit – The service after sale is recommended every 2 or 5 years according to your use.

Complete your workstation with our product suggestions :
– sprotective cover
– reference pressure gauge
– additional adaptors
– cleaning tools
– oils, o-rings or spare parts
