- Water Proof Cased
- Large Capacity – up to 200 junctions
- Suitable for Power Station Use

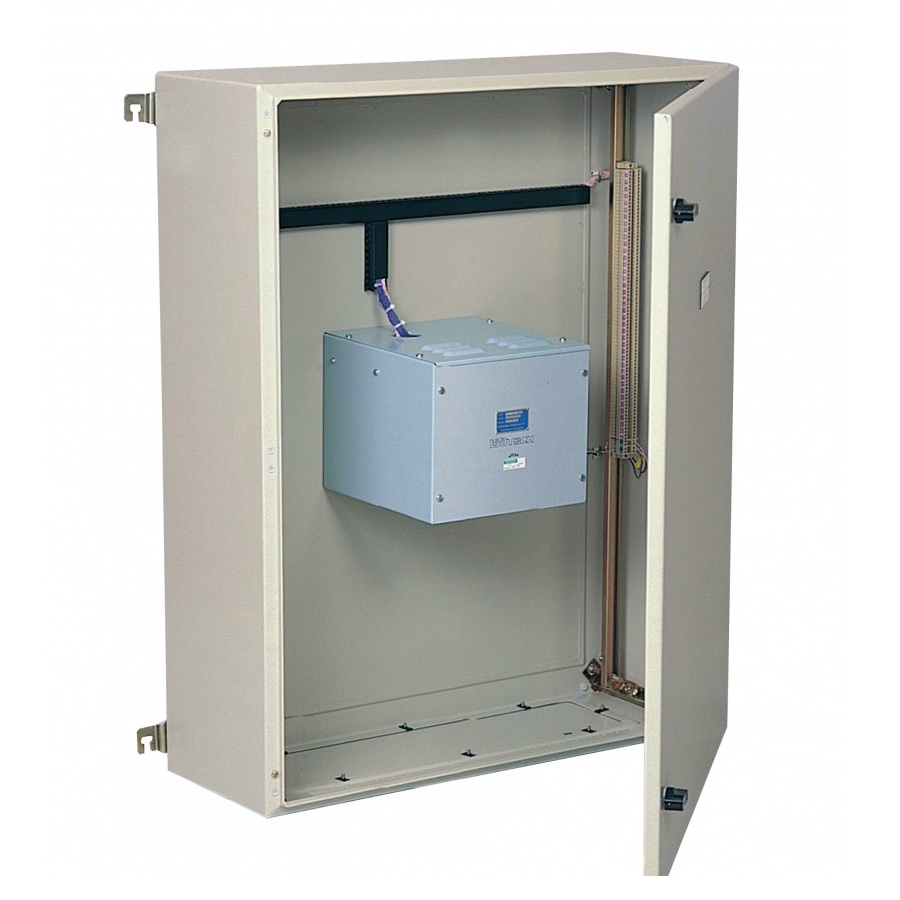

The Hotbox is housed in a robust waterproof enclosure to IP66 incorporating bottom gland plate. Fixing lugs for wall mounting are provided. Easy access to terminal rails and oven assembly is via a hinged door.
All the thermocouple cold junctions are inserted into a metal oven block which is accurately temperature controlled.
A safety switch is fitted to cut off supplies if the temperature rises 10°C above the set point.
