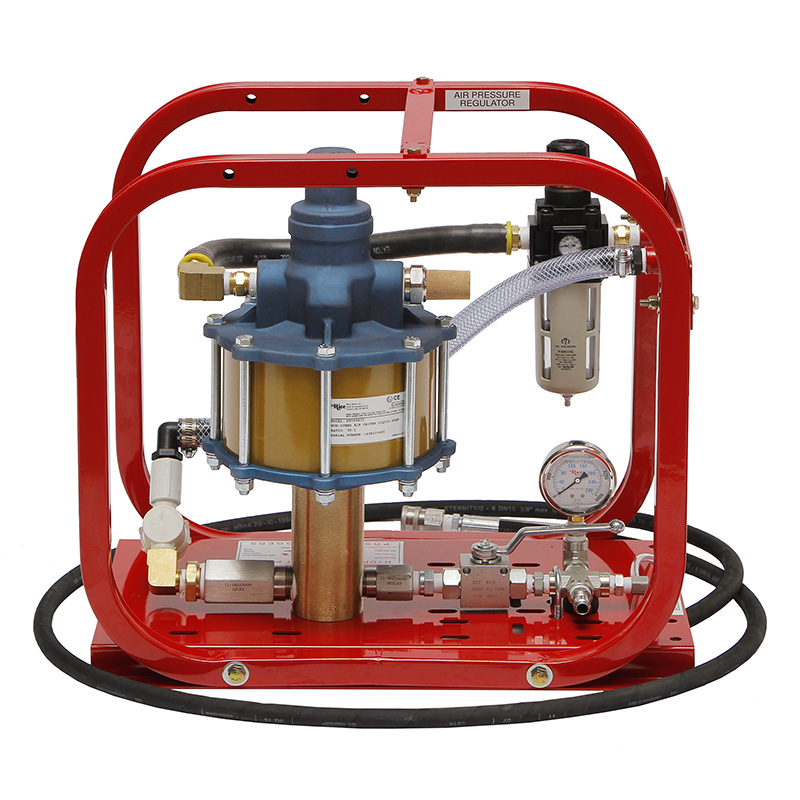

The HP-25/35 model is a pneumatic driven hydrostatic test pump with a pressure range of 350 to 3500 PSI, with a flow rate of 2.5 GPM. Lightweight at 50 pounds and portable this unit is ideal for testing in small confined spaces and remote locations. Designed for testing oil, gas, water and steam lines; such as onboard ships, oil rigs and refineries. This unit has the ability to start/stop while under pressure, and is capable of handling various fuels, oils and chemicals.
- Needing only 100 PSI of standard shop air, for maximum operation
- Outlet – 3/8″ high pressure 8 foot hose, with quick connect couplers
- 100 mesh stainless strainer, protecting pump from debris
- Stainless Steel liquid-filled 0-4000 PSI gauge, ensures accurate readings
- Rugged roll cage construction, protects pump from damage
- 1 Year Warranty from Manufacturers defect
- Weight: 50 Dimensions: 22 x 14 x 20 Shipping: 55 pounds
Wheel and Handle kit option available for increased mobility, can be added to your unit at any time.
