Ice Mantle Maker For Water Triple Point Cells

Brand:

Typical time to create a mantle is 20 to 30 minutes

Are you fed up with cold wet hands, and hours of frustration when you produce an ice mantle in your Triple Point Cell? Change your life and try the Isotech Ice Mantle Maker.

  • Specially designed anti-gravity heat pipe
  • Create mantle in 20-30 min with Jarrett-Isotech cell
  • Option for additional Ice Bridge Prevention Collar
  • Form beautiful, strain-free ice mantles

Are you fed up with cold wet hands, and hours of frustration when you produce an ice mantle in your Triple Point Cell?

Change your life and try the Isotech Ice Mantle Maker.

It works by using a specially designed anti-gravity heat pipe. The heat pipe exits the cell and exchanges the heat/cool in a small container filled with solid carbon dioxide or preferably liquid nitrogen.

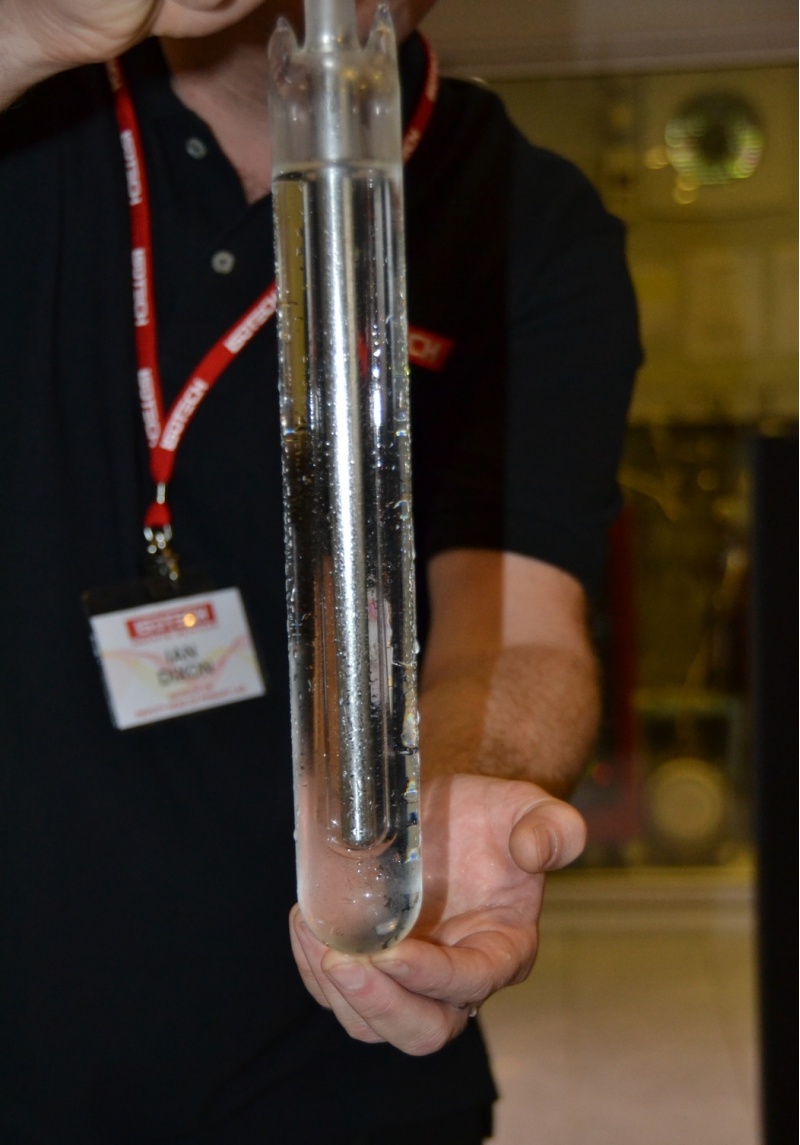

Because of the low temperature gradient along the heat pipe the ice mantle is formed close to 0°C, and so beautiful strain free mantles are formed.

The Mantle Maker works equally well when you wish to increase the thickness of ice at the bottom of the cell. By keeping only a cc of alcohol in the cell the heat transfer is focused around the bottom of the cell.
