MPO-2000 Series Multi-function Programmable Oscilloscope

Brand:

Features
  • MPO-2000P:200MHz; 4CH/2CH
  • MPO-2000B:100MHz; 4CH/2CH
  • Allow to use Python scripts to control for automation purpose
  • Dual Channel Spectrum analyzer with Spectrogram
  • I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
  • MPO-2000P:CAN FD, USB 2.0(full speed), FlexRay, USB PD, I2S digital decoding
  • MPO-2000B: CAN FD, USB 2.0 (full speed) digital decoding
  • Data log function is able to track signal changes up to 1000 hours
  • Network storage function
  • Equips with a spectrum analyzer; a dual channel 25MHz AWG; DMM and power supply.
  • Power Supply: Dual channel output, 1V to 20V continuously adjustable (0.1V step)
Request a quote
Add to Wishlist
Add to compare
Categories: Brand:

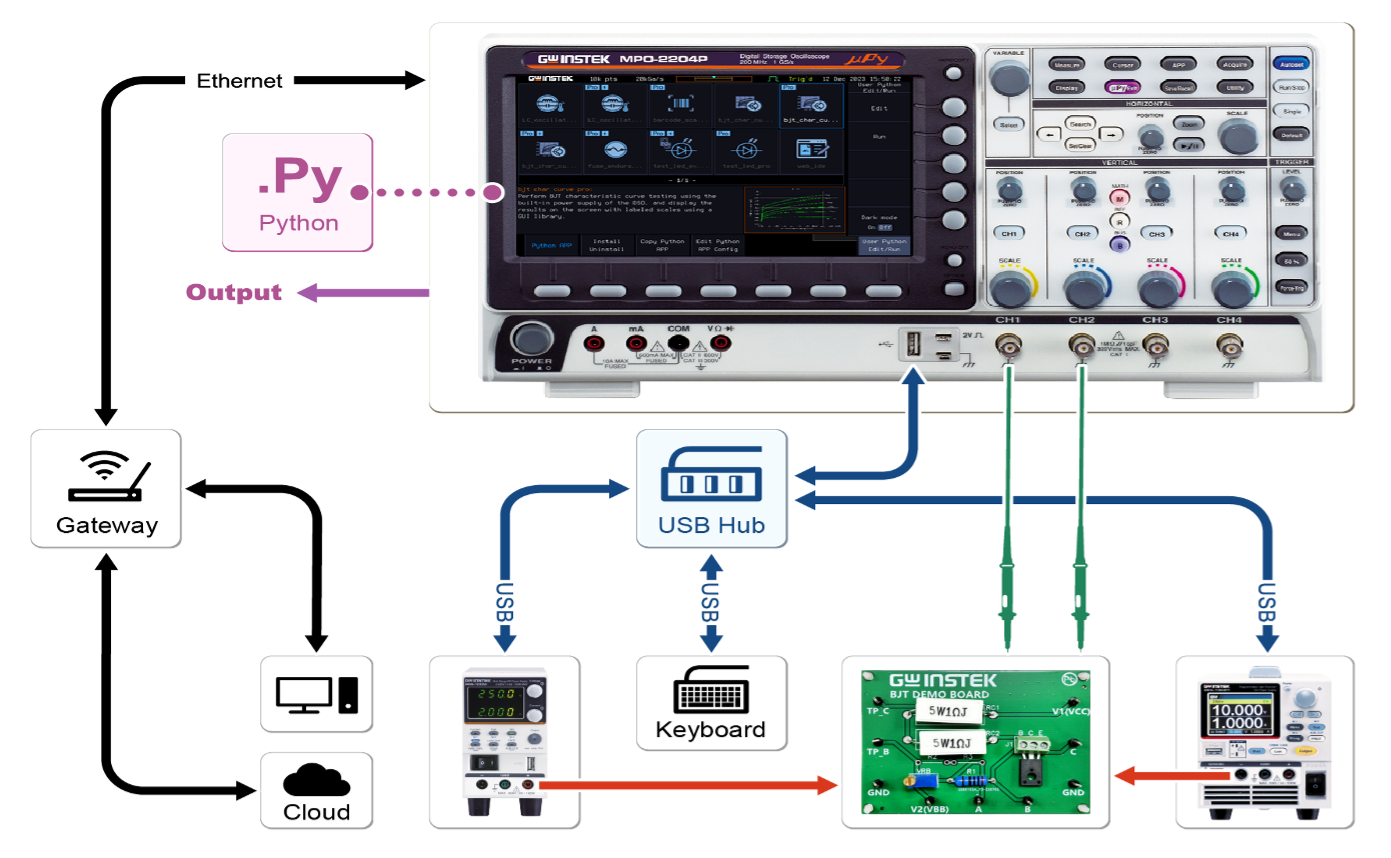

MPO-2000 provide 7 innovative functions:



  1. Python Script Execution
  2. Component Tester I-V curve
  3. Support MQTT Protocol
  4. Serial Bus decode
  5. Spectrogram
  6. Support Python GUI library (Professional version only)
  7. Support USB CDC-ACM, USB HID Protocol (Professional version only)





The Python APP currently installed on MPO-2000 includes the following categories:



  • BJT output characteristic curve
  • LC oscillator circuit frequency and temperature characteristic curve
  • Fuse endurance test
  • LED forward bias characteristic curve
  • Barcode scanner measurement application
