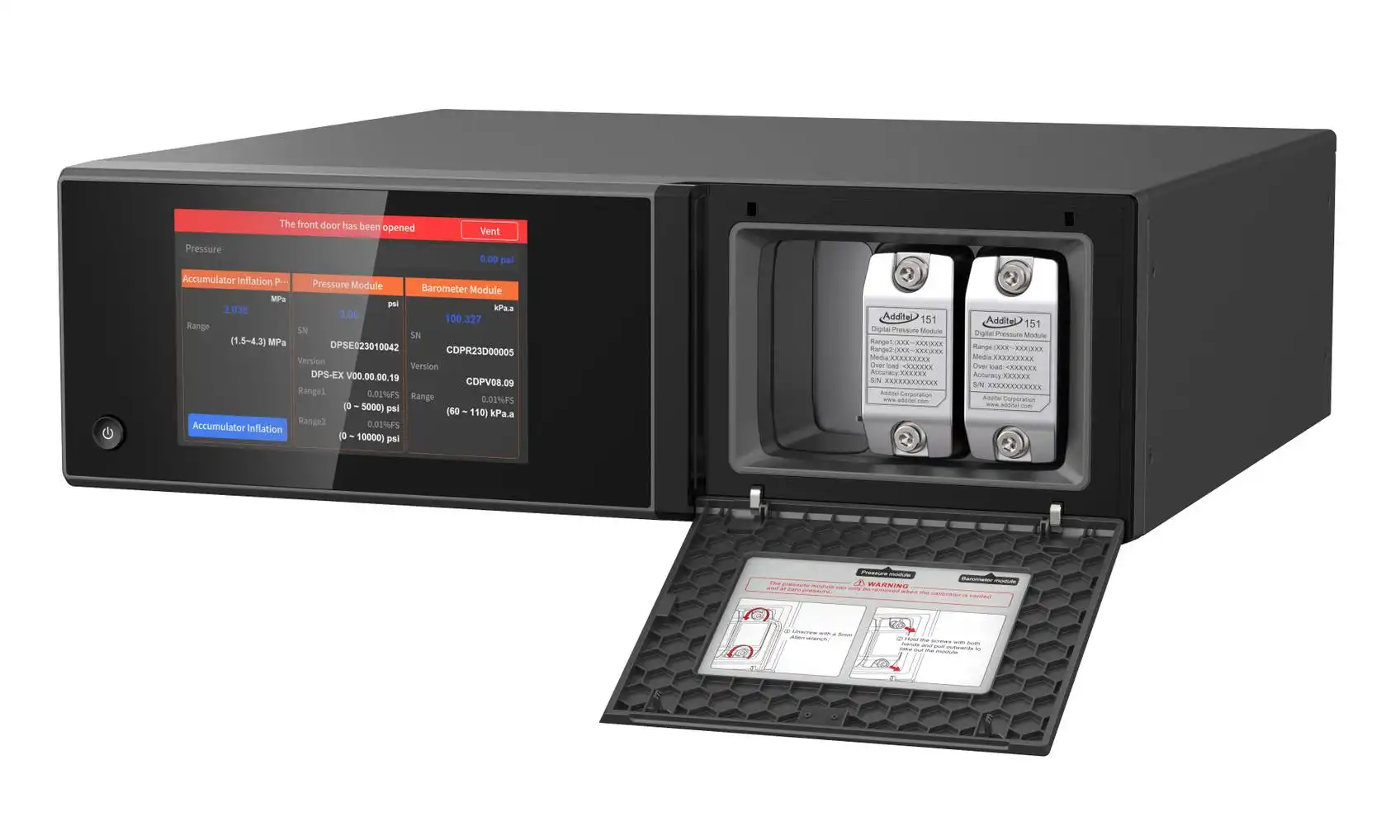

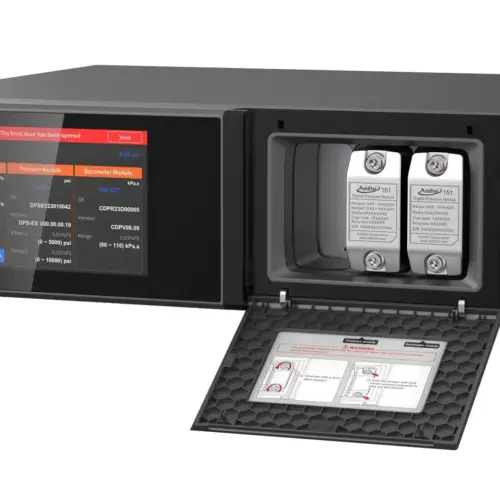

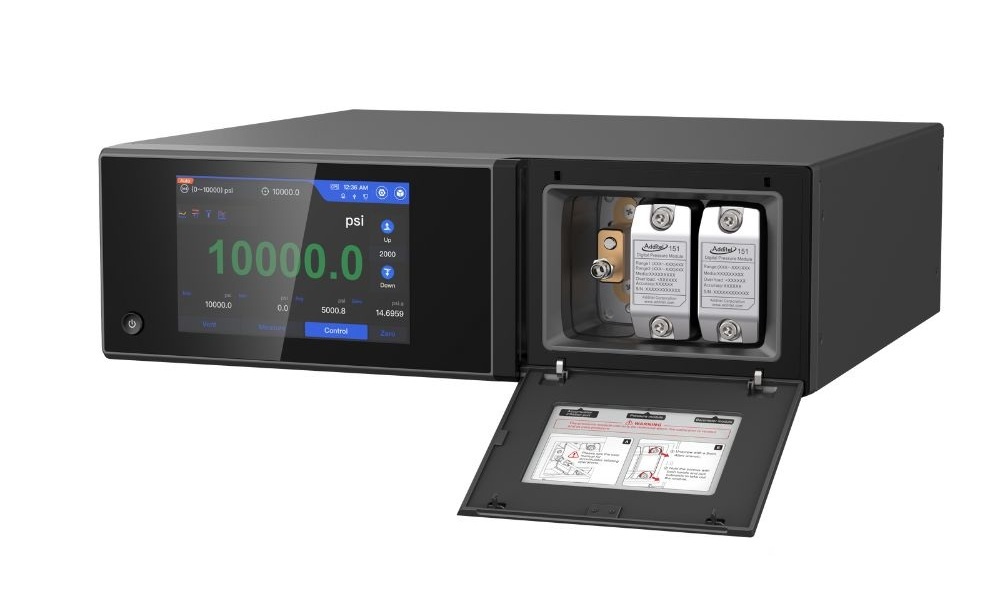

The Additel 793 pressure controller combines the latest control / measure technology, modular design and easy to use / maintain features into a single user friendly deice. The Additel 793 provides pressure control up to 15,000 psi (1,000 Bar). For users who require automated production, test, and calibration, Additel has the workload covered with this pressure controller. The ADT793 accepts one ADT151 dual-range pressure module in additional to a barometric pressure module. This allows users to quickly cover a wide range of pressures.
Need Help?
+966 505 275 601
+966 556 514 718

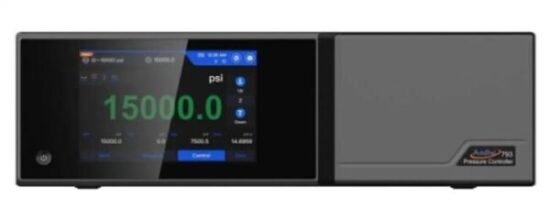

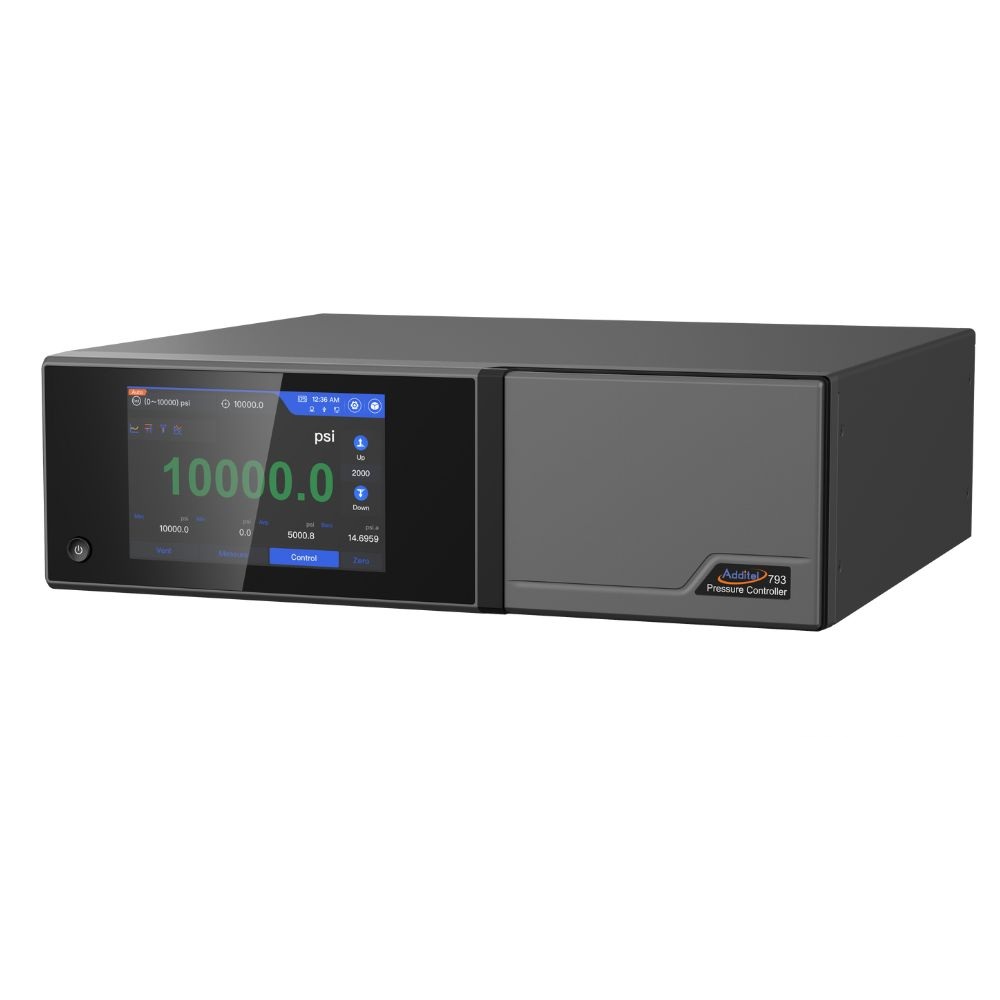

Additel 793
Pressure Controller / Generator
- Maximum pressure control range to 15,000 psi (1,000 Bar)
- Interchangeable pressure module

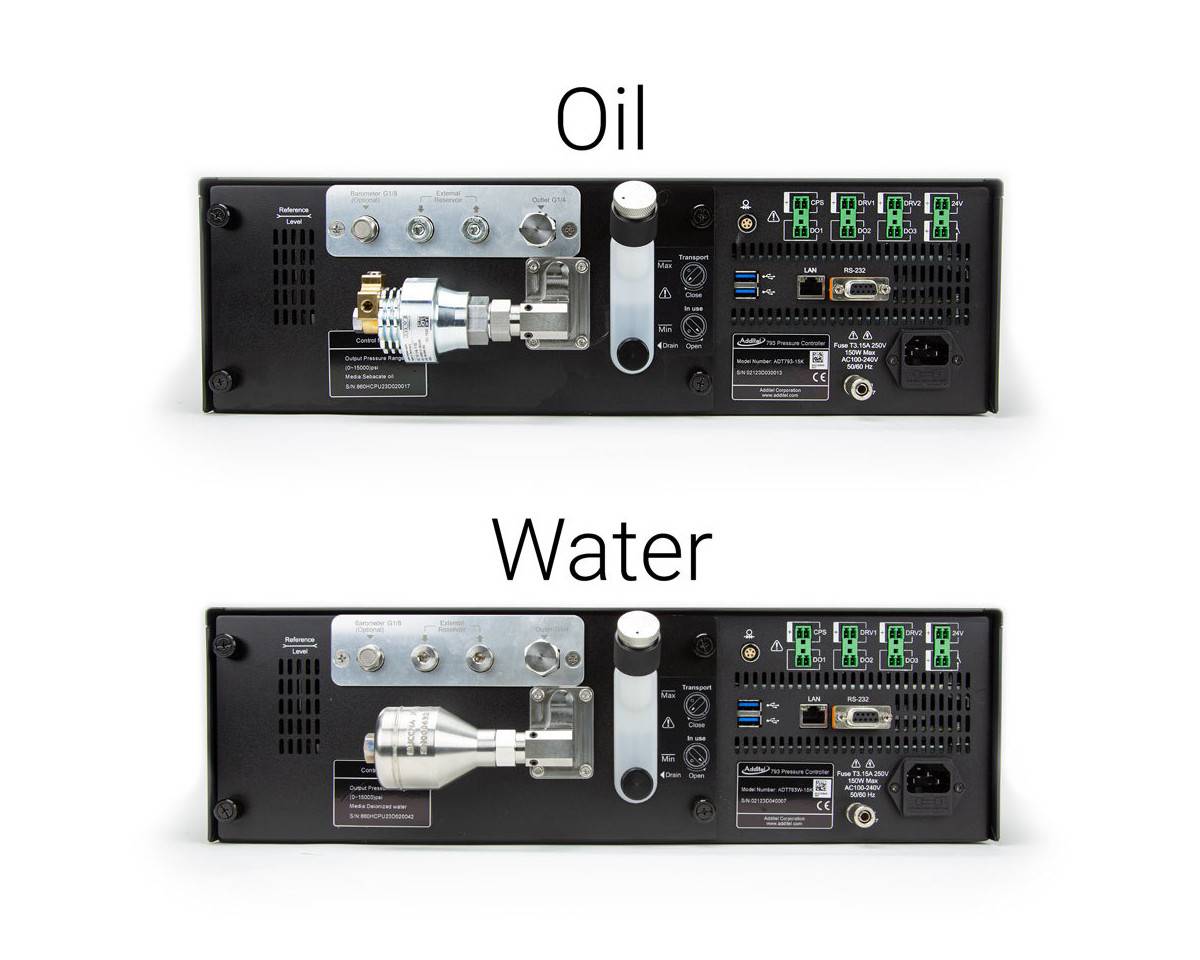

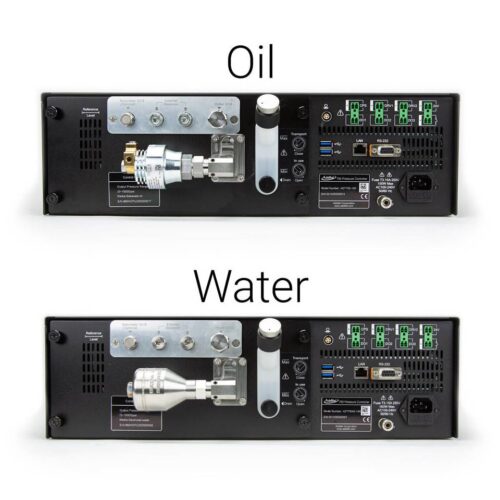

- Oil and water versions available
- Accuracy of 0.02%FS, 0.01%FS or 0.01%RD
- Dual-range from -15~3,000 psi (-1~200 Bar ) to 0~15,000 psi (0~1,000) Bar
- Control stability 0.005%FS
- Ultra-High speed pressure generation and control
- No external pressure source required
- Control using internal or external pressure modules
- Contamination Prevention System (CPS) (ADT793 optional)
- LAN, USB, RS232, and Ethernet communication
- External reservoir support
- Easy maintenance
- Emulation mode
