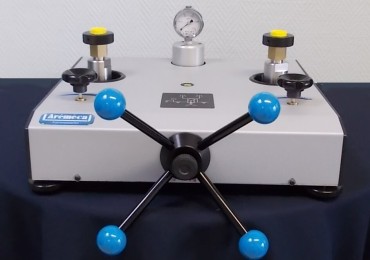

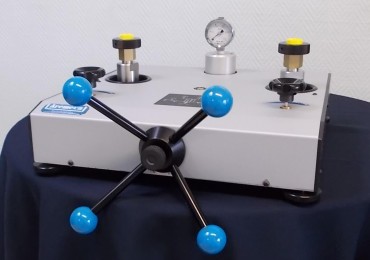

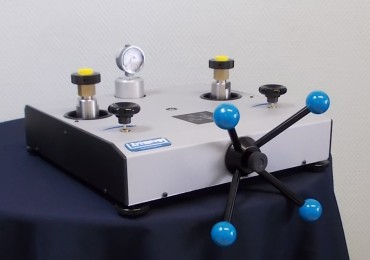

High performance comparison bench 200 bar

Brand:

reference : CA2-200B

Technical specifications

  • measuring : 0 to 200 bar / 0 to 3000 PSI / 0 to 20000 kPa
  • sensitivity : 10% Pmaxi = 0.001 bar / 50% Pmaxi = 0.002 bar / 100% Pmaxi = 0.005 bar
  • weight of the comparison bench : 18 Kg
  • fluid : clean and dry air such as compressed air or nitrogen
  • typical piston section : 1.8cm²
  • piston/cylinder/pipe material : P = stainless steel / C = aluminum
  • pipe material : copper
  • number of pistons : 1

Options

– Kit to modify the comparison test pump into dead weight tester (CA2 -> BA2)
– Oxygen degreasing

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + data sheet + Certificate
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or after sales service your unit – Calibration device recommended every 2 or 5 years. The calibration is recommended every 2 or 5 years according to your use.

Complete your workstation with our product suggestions :
– carrying case
– sprotective cover
– reference pressure gauge
– fine adjustment valve
– additional adaptors
– cleaning tools
– oils, o-rings or spare parts
