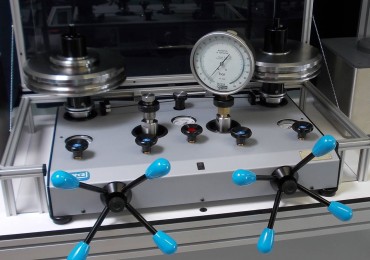

High performance differential Dead weight tester BDA3-120B

Brand:

reference : BDA3-120B

Technical specifications

  • measuring : 1 to 120 bar
  • accuracy : 0.01% of the scale / 0.002% of static pressure
  • weight of the DWT without weights : 40 Kg
  • fluid : clean and dry air type compressed air or azote + Piston lubrification system : Oil H15 – fluid density : 845 kg/m3
  • typical piston section : 39.2280mm²
  • piston/cylinder/pipe material : P = treated steel / C = treated steel
  • number of pistons : 1

Options

To be specified when ordering :
– Standard gravity (9.80665m/s²) or special gravity (indicate the desired value)

Options available :
– Intermediaite set of weights
– A calibration certificate COFRAC or DKD/DAkkS.

Request a quote
Add to Wishlist
Add to compare
Categories: , , Brand:

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + a factory calibration certificate traceable to the national standards + the data sheet + 0.5 liter of mineral Oil with safety sheet
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or service after sale of your unit – Calibration device recommended every 2 years depending on your use.
