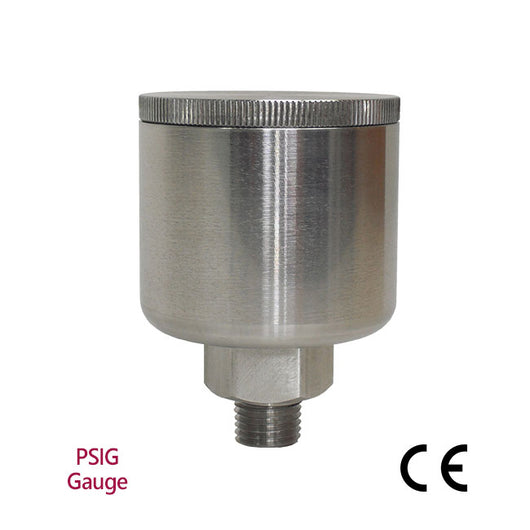

The Track-It™ Gauge Pressure/Temperature Data Logger is a battery-powered, stand-alone, watertight, compact data logger that can record up to 64,000 samples. It can be configured to record both pressure and ambient temperature or either parameter alone to maximize data storage space. The unit is easily configured using the free downloadable Track-It™ DataLogger Software; simply connect the included USB cable to the logger and an open USB port on your PC and the Track-It™ DataLogger Software automatically identifies the logger.
Configure the unit to start or stop recording immediately, at a predetermined time and date, or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds up to 1 sample every 24 hours. The onboard data storage is nonvolatile so data will not be lost in the event of a depleted battery.
The Track-It™ Gauge Pressure/Temperature Data Logger can be ordered in ranges of 0-3, 0-35, 0-150, 0-350, 0-550, 0-2000, 0-5800, 0-8700, or 0-14,500 PSI. The logger is packaged in a rugged submersible (IP67) 316L stainless steel housing and has a standard ¼” NPT fitting (½” NPT fitting for 8700 and 14,500 ranges).
Typical Uses
- Industrial Processes
- Food Processing
- Water Supply Line
- Hydrant Water Pressure
- Household Water Pressure
- Building Supply Pressure
- Municipalities
- Oil and Gas
- Petrochemical
- Compressors
- Pumps
- Water and Wastewater
- Vacuum Furnaces
