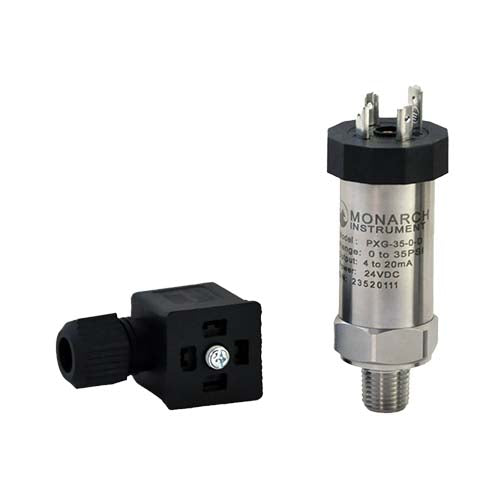

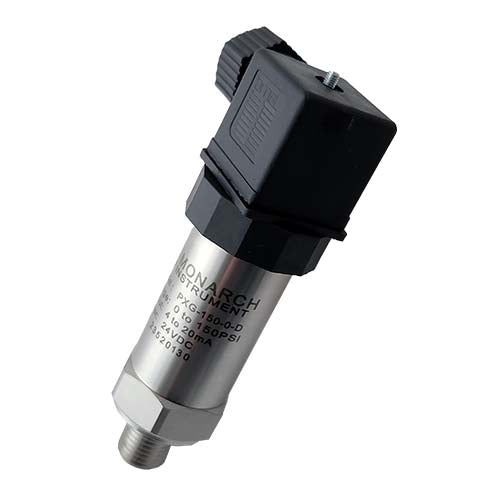

The PX Universal Pressure Transmitters use a diffused silicon pressure sensor to sense an applied pressure. Through internal application-specific integrated circuits (ASIC), a millivolt signal is converted and transmitted into a standardized electrical output signal, such as 4-20 mA. This output can be directly used by control systems or data acquisition equipment (such as Monarch Instrument’s DataChart™ DC1250). The compact, lightweight design is easy to install. Simply connect the PX Pressure Transmitter directly to a computer interface card, control instrument, smart meter, or PLC. Long-distance transmission can use current output.
The PX Pressure Transmitters can be ordered in various pressure ranges, and multiple IP65-rated electrical connections are available. The 316L stainless steel enclosure is ideal for harsh, corrosive environments and comes standard with a threaded ¼” NPT pressure connection.
Four Pressure Ranges readily available – each with either DIN 43650 or M12 connection!
- 0-35 PSI
- 0-150 PSI
- 0-350 PSI
- 0-850 PSI
- Others available upon request
