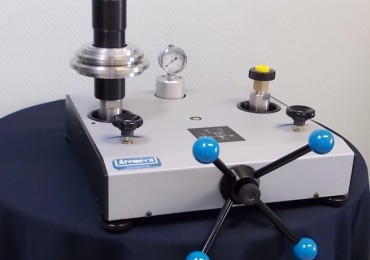

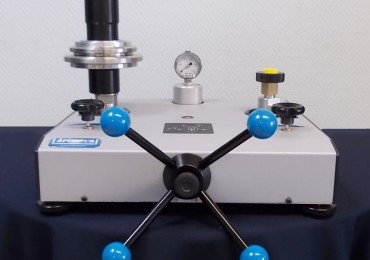

High performance Dead weight tester BA2-60B

Brand:

reference : BA2-60B

Technical specifications

  • measuring : 0.5 to 60 bar / 5 to 800 PSI / 50 to 6000 kPa
  • uncertainly of the pressure measured by the dead weight : 0.0005 + (1.10-4 x P* ) (*with P in bar)
  • accuracy : 0.01% of the scale / option : calibration COFRAC or DKD
  • weight of the DWT without weights : 22 Kg
  • generator base : CA2-200B
  • fluid : clean and dry air type compressed air or azote + Piston lubrification system : Oil H15 – fluid density : 845 kg/m3
  • typical piston section : 78.4825mm²
  • piston/cylinder/pipe material : P = treated steel / C = treated steel
  • number of pistons : 1

Options

To be specified when ordering :
– Choice of the unit of the principal set of weights: Bar, PSI, KPa etc…
– Standard gravity (9.80665m/s²) or special gravity (indicate the desired value)

Options available :
– Intermediaite set of weights and/or additional principael set of weights for different units
– A calibration certificate COFRAC or DKD/DAkkS.
– Option OP0004 : Motorization (drive of rotating masses) / Visualization (piston position by indicator lights)
– Option OP0301 : Calculator module with dynamic visualization of the position of the piston, automatic display of the pressures generated by the dead weight according to the temperature, the atmospheric pressure and the hygrometry, with data transfer to a computer for total traceability and calibration certificate edition.
– Oxygen degreasing

Request a quote
Add to Wishlist
Add to compare
Categories: , , Brand:

Additional informations  :

  • Delivery details : a manual are provided in English and French with the device + a factory calibration certificate traceable to the national standards + the data sheet + 0.5 liter of mineral Oil with safety sheet
  • Maintenance : Our technical service department is at your disposition for the revision, calibration or service after sale of your unit – Calibration device recommended every 2 years depending on your use.
